Goods Name ： |

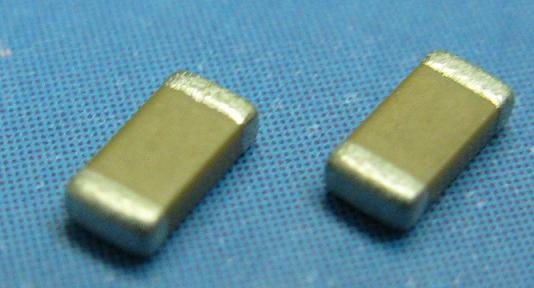

Ceramic Capacitors |
Introduction： |
| Ceramic Capacitors |
 |
| Photo |
Categories |
Characteristic |
Series, Types |
Catalog |
 |
General Use |
CH, C0G, B, X7R, X5R, F, Y5V, X6S / Edc: 6.3 to 50V |
C0603 |
PDF:179KB |
| C1005 |
| C1608 |
| C2012 |
| C3216 |
| C3225 |
| C4532 |
| C5750 |
 |
Mid Voltage |
CH, C0G, B, X7R, X5R / Edc: 100 to 630V |
C1608 |
PDF:103KB |
| C2012 |
| C3216 |
| C3225 |
| C4532 |
| C5750 |
 |
High Voltage |
C0G / Edc: 3kV |
C4520 |
PDF:45KB |
| C4532 |
| X7R / Edc: 1 to 2kV |
C4520 |
PDF:43KB |
| C4532 |
 |
Guaranteed at High Temperature |
X8R / Edc: 25 to 100V |
C1005 |
PDF:78KB |
| C1608 |
| C2012 |
| C3216 |
| C3225 |
 |
Low ESL, Flipped Type |
X6S, X5S, JB, X7R, X5R, X7S / Edc: 4 to 50V |
C0510 |
PDF:67KB |
| C0816 |
| C1220 |
| C1632 |
 |
2-chip Piled |
X5R, X7R / Edc: 16 to 630V |
CKG32K |
PDF:100KB |
| CKG45K |
| CKG45N |
| CKG57K |
| CKG57N |
 |
Low ESL, 3-terminal Feed Through |
Edc: 6.3 to 50V |
CKD110JB |
PDF:66KB |
| CKD310JB |
| CKD510JB |
| CKD610JB |
| CKD61BJB |
 |
Low ESL, Ultra Low Inductance |
X7R, X7S / Edc: 4 to 10V |
CLLC1A |
PDF:50KB |
| CLLE1A |
 |
ESR-Controlling Type |
X5R / Edc: 4V |
CERB/CERD |
PDF:40KB |
| Photo |
Categories |
Characteristic |
Series, Types |
Catalog |
|
General Use |
C0G, X7R / Edc: 16V to 50V |
CGA2(C1005) |
PDF:70KB |
| CGA3(C1608) |
| CGA4(C2012) |
| CGA5(C3216) |
| CGA6(C3225) |
|
Mid Voltage |
C0G, X7R / Edc: 100V to 630V |
CGA3(C1608) |
PDF:64KB |
| CGA4(C2012) |
| CGA5(C3216) |
| CGA6(C3225) |
|
Guaranteed at High Temperature |
X8R / Edc: 25 to 100V |
CGA2(C1005) |
PDF:60KB |
| CGA3(C1608) |
| CGA4(C2012) |
| CGA5(C3216) |
| CGA6(C3225) |
| Photo |
Categories |
Characteristic |
Series, Types |
Catalog |
 |
2-element |
CH, C0G, JB, X7R, X5R / Edc: 6.3 to 50V |
CKCL22 |
PDF:57KB |
| CKCM25 |
|
4-element |
CH, C0G, JB, X7R, X5R / Edc: 6.3 to 50V |
CKCA43 |
PDF:64KB |
| CKCL44 |
| Photo |
Categories |
Characteristic |
Series, Types |
Catalog |
 |
General Use |
C0G, X7R, X5R, Y5V / Edc 6.3 to 50V |
FK |
PDF:66KB |
| Mid Voltage |
C0G, X7R / Edc: 100 to 630V |
FK |
PDF:59KB |
| Mid-high Voltage(Disk with Lead Wire) |
| Photo |
Categories |
Characteristic |
Series, Types |
Catalog |
 |
General Use |
B, E / Edc: 1k to 3kV |
CK45 |
PDF:34KB |
 |
Low Dissipation at High Frequency and General Use |
SL / Edc: 1k to 6kV |
CC45 |
PDF:67KB |
| R / Edc: 1k to 3kV |
CK45-RR |
PDF:31KB |
| B / Edc: 1k to 3kV |
CK45-RB |
PDF:30KB |
 |
Safety Standard Approved |
B, E / Eac: 250V |
CD |
PDF:41KB |
| B, E, F / Eac: 250V |
CS |
PDF:42KB |
|
|
